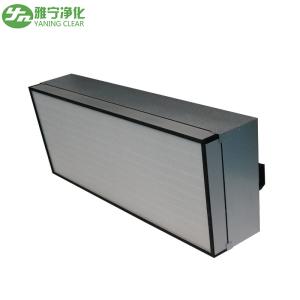

A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to clean rooms, laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.The units are installed within the system's ceiling or floor grid. Large clean rooms require a proportionally large number of FFU, which in some cases may range from several hundred to several thousand.Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
3-1. With innovated DCBL Motor. Better efficiency and performance than conventional AC FFU.
3-2. FFU design has been optimized. Motor weight reduced20%-40%. Motor size reduced25%-40%.
3-3. Energy and Cost Saving!Save 50-55% power consumption.
3-4. Be able to combine Set Free Control System and SCADA Control System.
3-5. 3D Airfoil turbo fan high efficient & low noise, anti-corrosion.
3-6. Stainless steel casing (SUS430), Convenient design of installation
| Model | FFU-KLC920 | FFU-KLC1175 | FFU-KLC1225 | Unit |
| Size | 920×615×350 | 1175×575×350 | 1225×615×350 | mm |
| plenum chamber materials | Aluminized zinc plate/stainless steel. | Aluminized zinc plate/stainless steel. | Aluminized zinc plate/stainless steel. | |
| Air flow | 800 | 1000 | 1200 | m3/h |
| Average wind velocity | 0.4/0.45/0.5 | 0.4/0.45/0.5 | /0.4/0.45/0.5 | m/s |
| Extemal static pressure | 97(10mmAq) | 97(10mmAq) | 97(10mmAq) | pa |
| Hepa filter size | 915×610×69 | 1170×570×69 | 1220×610×69 | mm |
| Efficiency | 0.12um@99.99% | 0.12um@99.99% | 0.12um@99.99% | |
| Filter initial pressure loss | 180Pa@0.45m/s | 180Pa@0.45m/s | 180Pa@0.45m/s | |
| Power | 180Pa@0.45m/s | 180Pa@0.45m/s | 180Pa@0.45m/s | |
| Fan vibration coefficient | 0.2-0.5mm/s | 0.2-0.5mm/s | 0.2-0.5mm/s | |
| Power dissipation | 123 | 123 | 172 | W |
| Weight | 24 | 28 | 31 | Kg |
| Noise | 53 | 55 | 55 | dB |
Dongguan Yaning Purification Technology Co., Ltd. is located in Humen town,Dongguan city,Guangdong province,China.YANING has been concentrating on the R&D, design, production, sale and installation of purification equipment. the company is committed to the purification industry for more than ten years, the South China purification technology industry's most Powerful enterprises. The main products used in health care, electronics technology, bio-medicine, food, precision instruments, aerospace,Autombile manufacturing, and many other areas.
